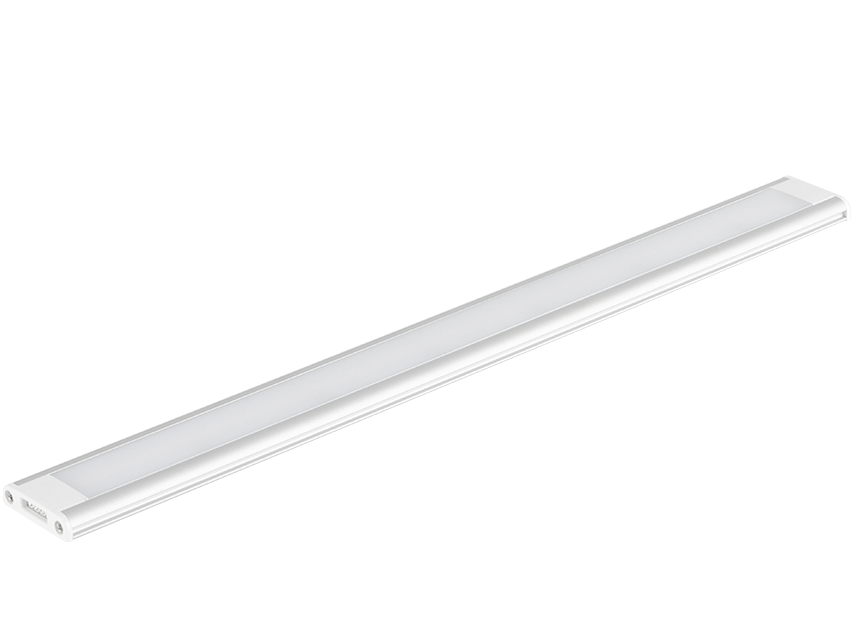

Linear Series
M3-L29

Description

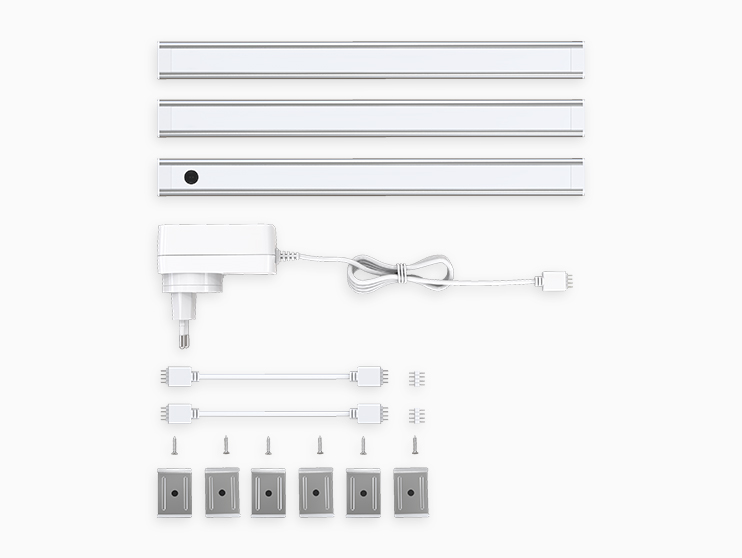

- Clips and 3M tape installations
- Super slim design, the thickness is 6mm
- IR sensor, dimmable functions
- Seamless docking





Application Scenarios

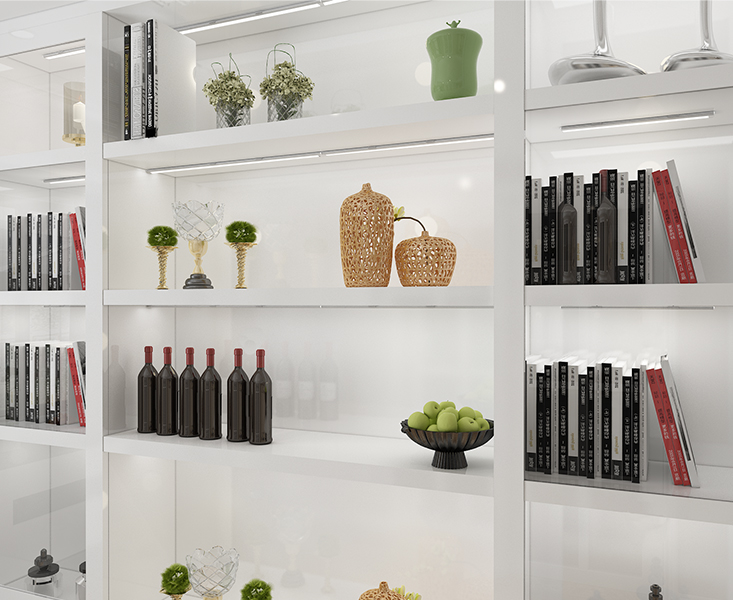

Kitchen cabinet,Wine cabinet, Wardrobe,Book cabinet

Download
M3-L29
M3-L29
M3-L29

Specification

Item No M3-L29-300 M3-L29-500 M3-L29-800 M3-L29-300IR M3-L29-500IR M3-L29-800IR
Power 3W 5W 8W 3W 5W 8W
Voltage DC24V DC24V DC24V DC24V DC24V DC24V
Luminous 240lm 400lm 640lm 240lm 400lm 640lm
CCT 3000-6500k 3000-6500k 3000-6500k 3000-6500k 3000-6500k 3000-6500k
CRI ＞80 ＞80 ＞80 ＞80 ＞80 ＞80
IP rate IP20 IP20 IP20 IP20 IP20 IP20
Dimension 300*26.5*6mm 500*26.5*6mm 800*26.5*6mm 300*26.5*6mm 500*26.5*6mm 800*26.5*6mm
M3-L29_Asm-21
M3-L29-Install

M3-L29_Asm-21

M3-L29-Install

Dimension:mm
Application Scenarios
M3-L29 Application
